Winch Machine: A Complete Guide to Working, Types, Applications, and Benefits
A winch machine is an essential material handling device used for lifting, pulling, and moving heavy loads with precision and safety. Industries such as construction, manufacturing, mining, marine operations, warehouses, railways, and infrastructure projects rely heavily on winch machines to improve productivity and reduce manual labor. Modern electric winch machines offer reliable performance, higher load capacities, and enhanced safety features, making them indispensable in industrial operations.
What is a Winch Machine?
A winch machine is a mechanical device designed to wind or unwind a wire rope, cable, or chain around a rotating drum. The drum is powered manually, electrically, hydraulically, or pneumatically depending on the application. By controlling the movement of the cable, the winch can lift, pull, or position heavy materials with ease.
Electric winch machines are among the most widely used types due to their efficiency, ease of operation, and ability to handle heavy-duty industrial tasks. They are available in various capacities ranging from a few hundred kilograms to several tons.
How Does a Winch Machine Work?
The working principle of a winch machine is straightforward:
- An electric motor or power source drives the winch.
- The motor rotates the drum.
- A wire rope or cable winds around the drum.
- The load attached to the cable is lifted, pulled, or lowered.
- Braking and control systems ensure smooth and safe operation.
Modern winches include safety mechanisms such as overload protection, emergency braking systems, limit switches, and weatherproof control panels to ensure operational safety.
Types of Winch Machines

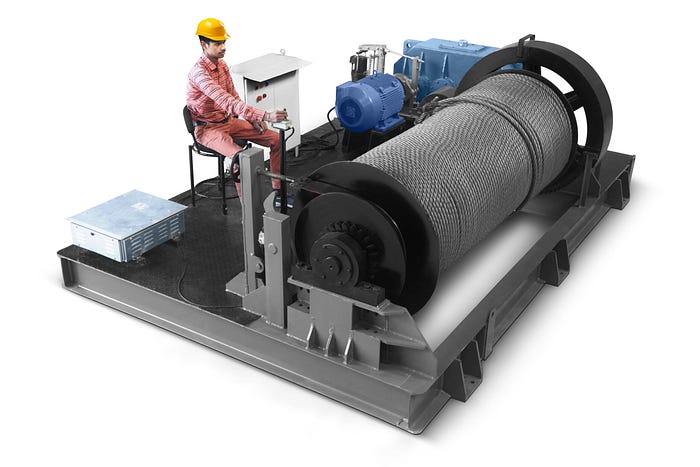

1. Electric Winch Machine
Electric winches operate using an electric motor and are widely used in industrial applications. They offer high efficiency, consistent performance, and easy operation.
Key Features:
- High lifting capacity
- Low maintenance
- Remote or pendant control operation
- Suitable for continuous use
2. Hydraulic Winch Machine
Hydraulic winches use hydraulic power to generate pulling force. They are commonly used in marine, offshore, and heavy-duty applications where high pulling power is required.
3. Manual Winch Machine
Manual winches are operated using a hand crank and are suitable for light-duty applications where electrical power is unavailable.
4. Rope Winch Machine
These winches utilize wire ropes and are commonly used in construction, lifting, and material handling operations requiring long pulling distances.

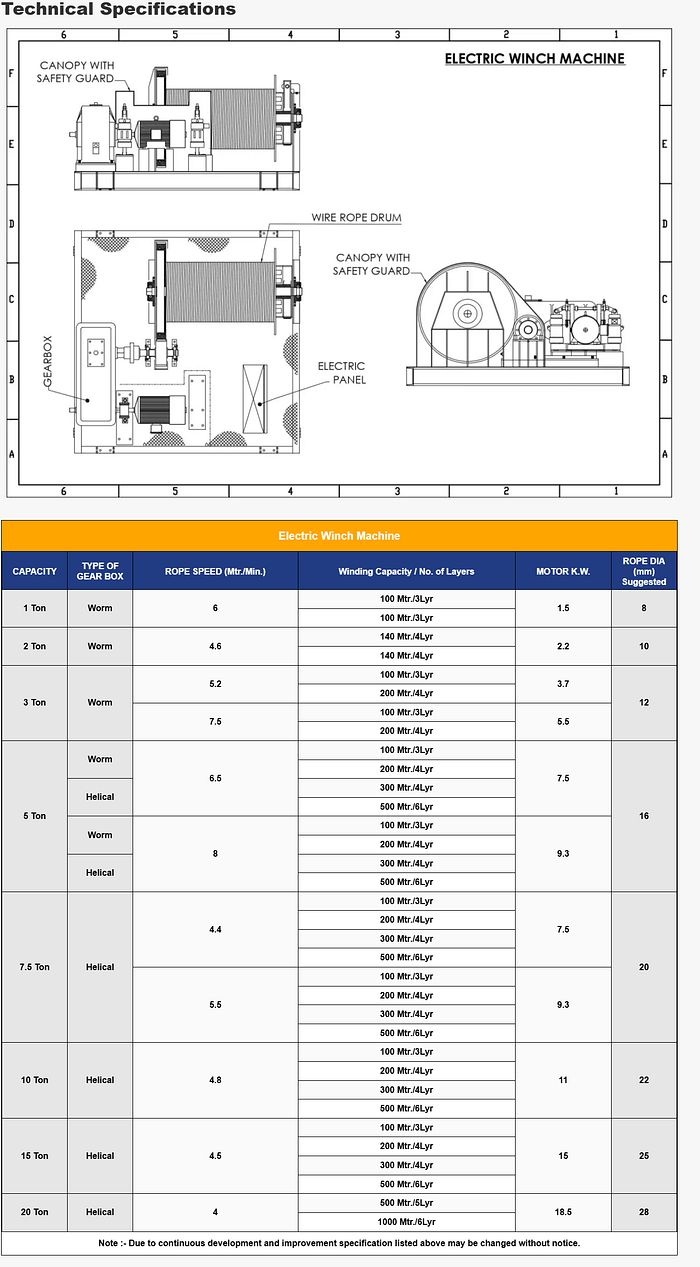

Main Components of a Winch Machine
A standard winch machine consists of:
- Electric motor
- Wire rope or cable
- Rope drum
- Gearbox or reducer
- Braking system
- Control panel
- Base frame
- Hook and lifting accessories
These components work together to ensure smooth load handling and operational reliability.
Applications of Winch Machines
Winch machines are used across numerous industries:
Construction Industry
- Material lifting
- Steel structure erection
- Concrete equipment handling
- Infrastructure projects
Manufacturing Plants
- Heavy machinery movement
- Assembly line support
- Raw material handling
Railways
- Wagon pulling
- Track maintenance operations
Marine and Shipyards
- Boat pulling
- Anchor handling
- Dock operations
Mining Industry
- Equipment transportation
- Material extraction operations
Warehouses and Logistics
- Cargo movement
- Heavy goods positioning
Winches are also commonly used in dam projects, conveyor belt pulling systems, and industrial installations.
Advantages of Electric Winch Machines
Increased Productivity
Electric winches significantly reduce manual effort and accelerate material handling processes, improving overall operational efficiency.
Enhanced Safety
Modern electric winches feature overload protection, braking systems, and emergency controls that help minimize workplace accidents.
High Load Capacity
Industrial winches can handle loads ranging from 500 kg to more than 100 tons depending on the model and application.
Durability
Built with heavy-duty steel components and robust gear mechanisms, winch machines provide long service life even in demanding environments.
Versatility
Winches can be adapted for lifting, pulling, towing, and positioning applications across multiple industries.
Factors to Consider Before Buying a Winch Machine
When selecting a winch machine, consider:
- Required lifting or pulling capacity
- Rope length and diameter
- Motor power rating
- Duty cycle requirements
- Operating environment
- Safety features
- Maintenance requirements
- Compliance with industry standards
Choosing the right specification ensures maximum performance, safety, and equipment lifespan.
Maintenance Tips
To keep a winch machine operating efficiently:
- Inspect wire ropes regularly.
- Lubricate moving components.
- Check braking systems periodically.
- Monitor electrical connections.
- Replace worn-out parts promptly.
- Follow manufacturer maintenance schedules.
Regular maintenance improves safety and reduces unexpected downtime.
Conclusion
A winch machine is a powerful and reliable solution for lifting, pulling, and handling heavy loads in industrial environments. Whether used in construction, manufacturing, mining, marine operations, or warehouses, electric winch machines provide superior efficiency, safety, and performance. By selecting the right capacity and maintaining the equipment properly, businesses can achieve smoother operations, increased productivity, and long-term cost savings.
